SALE
Samurai 20,000 lbs 12v Electric Winch w/Synthetic Rope | Warrior
$2,727.00
$2,449.00
(You save $278.00)
- SKU:
- 200SA12-CAD
- Weight:
- 130.00 LBS
- SHIPPING:
- CALCULATED AT CHECKOUT

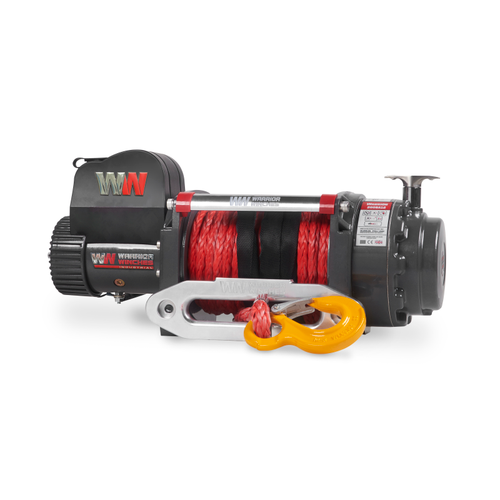

Samurai 20,000 lbs 12v Electric Winch w/Synthetic Rope | Warrior
Description
- All Brass (no corrosion) Series Wound Motor
- Double Sealed Motor
- Sealed Waterproof Contactor
- Sealed 3 Stage Planetary Gears
- Contactor Cover for Added Protection
Warrior Winches are excited to announce the arrival of the colossal Samurai 20000lb Winch. Designed for the toughest of applications & tested in the most extreme environments imaginable, this great piece of kit boasts a massive 7.5 hp Series wound motor, which is housed in full steel supports, ensuring this immense Warrior is ready for any battle.
Available in 12v or 24v this Beast comes packed with all the features you would expect from the Samurai Range, the motor and gearbox are fully double sealed, the high spec motor boasts brass internals, all the external fittings including the roller fairleads are stainless steel & the smooth planetary gearing is full steel. All this is backed up by the unrivalled Warrior Lifetime Warranty
Specifications
| SKU | PRNT-Samurai-20000-CAD |
| Rated Volt | 12 |
| Rated Line Pull (lbs) | 20000 |
| Motor Type | 12V: Input: 7.8hp / 5.8 kW; Output: 4.1hp / 3.1 kW |
| Gearing | 430:1 |
| Braking Action | Auto in the Drum |

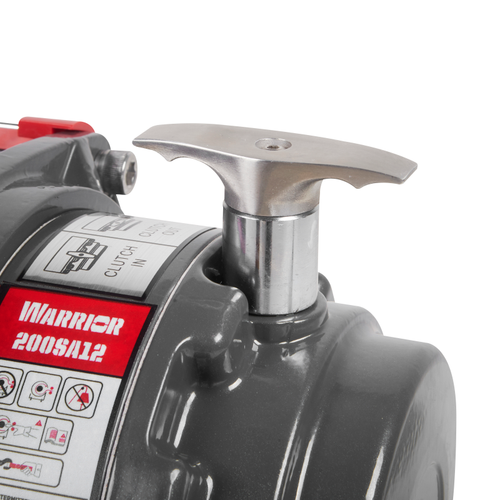

| Clutch | Manual |
| Mounting Pattern | 10" x 4.4" (254 x 114 mm) |
| Cable Material | Synthetic |
| Drum Size - Dia x L | 3.50" x 8.54" |
| Dimensions (L x W x H) | 24.41'' x 8.43'' x 11.10'' |
| Product Weight lbs (kg) | 127.89 (58.0) |
Line Pull Spec
| Layer of Rope/Cable | Line Pull: lbs(kgs) |
|---|---|
| 1 | 20000 (9072) |
| 2 | 16160 (7330) |
| 3 | 13557 (6149) |
| 4 | 11677 (5297) |
| Line Pull lbs (kgs) | Line Speed 12v ft/min (m/min) | Line Speed 24v ft/min (m/min) | Amp Draw 12v | Amp Draw 24v |
|---|---|---|---|---|
| 0 | 21.3 (6.5) | 19.7 (6.0) | 100 | 40 |
| 6000 (2728) | 7.2 (2.2) | 7.9 (2.4) | 220 | 100 |
| 10000 (4545) | 5.6 (1.7) | 5.9 (1.8) | 320 | 140 |
| 12500 (5682) | 4.9 (1.5) | 5.2 (1.6) | 350 | 180 |
| 14000 (6350) | 4.6 (1.4) | 4.6 (1.4) | 380 | 200 |
| 17500 (7938) | 3.0 (0.9) | 3.9 (1.2) | 450 | 250 |
| 20000 (9072) | 3.0 (0.9) | 3.3 (1.0) | 480 | 265 |
