SALE

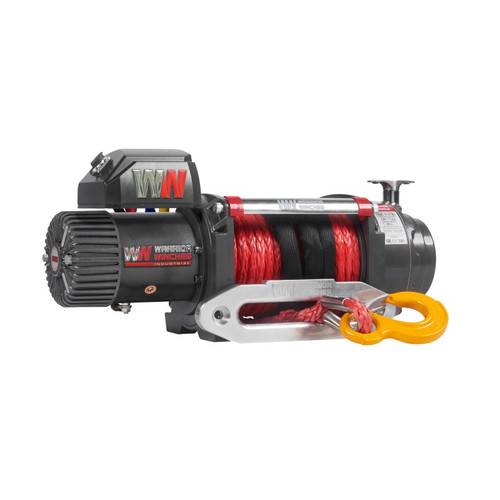

Samurai 17,500 lbs 12v Electric Winch w/Synth Rope | Warrior
$2,230.00
$2,110.00
(You save $120.00)
- SKU:
- 175AD12-CAD
- Weight:
- 125.00 LBS
- SHIPPING:
- CALCULATED AT CHECKOUT
Samurai 17,500 lbs 12v Electric Winch w/Synth Rope | Warrior
Description
- All Brass (no corrosion) Series Wound Motor
- Double Sealed Motor
- Sealed Waterproof Contactor
- Sealed 3 Stage Planetary Gears
- Contactor Cover for Added Protection
The best lb for lb winch on the market. Outstanding features includes Huge 7.0 hp high quality double sealed motor with brass fittings, heavy duty waterproof contactors, double sealed drum on maintenance free bearings, quiet, fully sealed efficient full steel planetary gearing. Stainless steel roller or Aluminiun Fairlead and fittings as standard.
PLEASE NOTE: This winch can only be front mounted using the appropriate IST640 mounting plate
Specifications
| Rated Volt | 12 |
| Rated Line Pull (lbs) | 17500 |
| Motor Type | 12V: Input: 7.2hp / 5.4 kW; Output: 3.9hp / 2.9 kW |
| Gearing | 430:1 |
| Braking Action | Auto in the drum |
| Clutch | Manual |
| Mounting Pattern | 10" x 4.4" (254 x 114 mm) |
| Cable Material | Synthetic |
| Drum Size - Dia x L | 3.50" x 8.54" |
| Dimensions (L x W x H) | 24.41'' x 8.43'' x 11.10'' |
| Product Weight lbs. (kg) | 123.48 (56.0) |
Line Pull Spec
| Layer of Rope/Cable | Line Pull: lbs(kgs) |
|---|---|
| 1 | 17500 (7938) |
| 2 | 14000 (6364) |
| 3 | 12500 (5682 |
| 4 | 10000 (4545) |
| 5 | 6000 (2728) |
| Line Pull lbs (kgs) | Line Speed 12v ft/min (m/min) | Line Speed 24v ft/min (m/min) | Amp Draw 12v | Amp Draw 24v |
|---|---|---|---|---|
| 0 | 19.7 (6.0) | 21.0 (6.4) | 100 | 40 |
| 6000 (2728) | 7.2 (2.2) | 7.9 (2.4) | 220 | 100 |
| 10000 (4545) | 5.6 (1.7) | 5.9 (1.8) | 320 | 140 |
| 12500 (5682) | 4.9 (1.5) | 5.2 (1.6) | 350 | 180 |
| 14000 (6350) | 4.6 (1.4) | 4.6 (1.4) | 380 | 200 |
| 17500 (7938) | 3.0 (0.9) | 3.9 (1.2) | 450 | 250 |
