2017 PTO w/Pump | Chelsea (249HMLLX-B461)

PTO w/Pump Kit | Chelsea (249HMLLX-B461)

$3,102.00 $2,200.00
(You save $902.00)
30.00 LBS

PTO w/Pump Kit | Chelsea

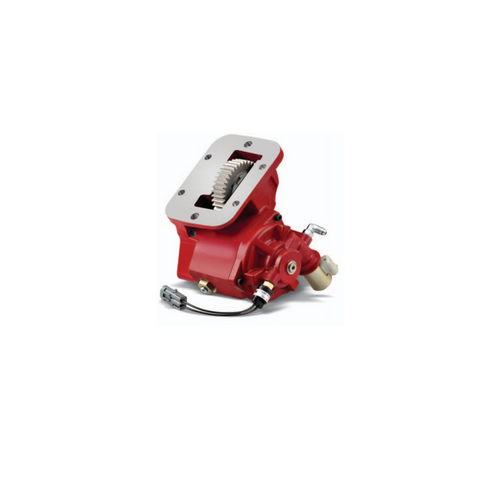

CHELSEA- Hydraulic 6-Bolt PTO - 249 Series

Featuring the Patented Chelsea Noise Suppression System


This 249 series PTO is simple to install, quieter and more cost-effective than other models. Reduces torsional noise levels that are common on PTO applications for these models of truck. A wide selection of pump sizes are available to provide optimum flow rates. The 249 Series also provides ease of installation through a single hose connection and an integrated cartridge valve and pressure switch helping to reduce installation time. The robust design makes the 249 perfect for any application

  • Aerial
  • Tow & Recovery
  • Fire & Rescue
  • Water Drilling

Product Features and Benefits:

  • Noise Suppression System - Provides quiet PTO applications on Ford Super Duty Trucks. (patent #9,494,227 B2)
  • Smart Start Available - Shock load dampening feature to protect driven equipment.
  • Single Hose connection and Integrated Actuation Valve - Single hose simplifies installation and reduces installation time along with eliminating leak paths.
  • Intermittent Torque Rating of 200 lbs. per ft. - 58 HP @ 1200 engine RPM.

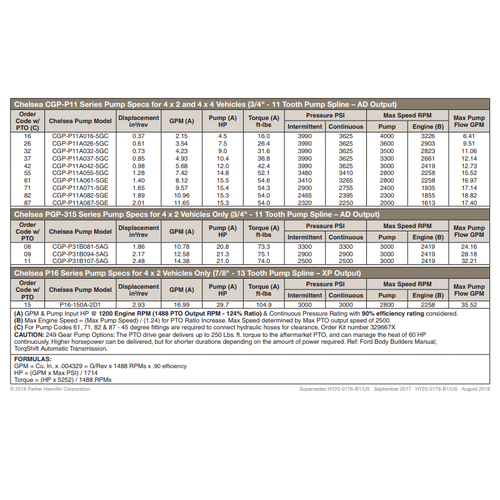

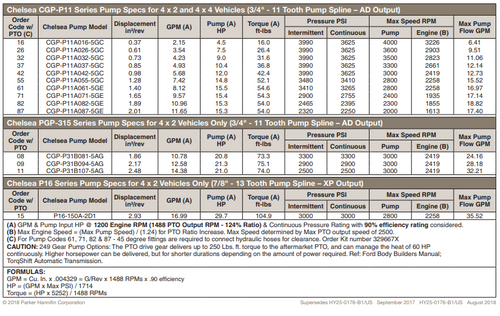

  • Pump flows up to 25.1 GPM at 1200 Engine RPM - Standard SAE flanges and shafts allow for a wider variety of flows and pressures.
  • Simple - PTO, pump, wiring harness and shift kits available under one part number and package.

Owner's Manual



9.0 GPM @ 1200 ENG RPM
