This product is a Jerr Dan Bus Arm, wheel grid, and tire lift installation kit for 14k

14K lb Heavy-Duty Bus Arm Tire Underlift | Jerr-Dan PN 2503880088

$5,498.00 $5,361.00
(You save $137.00)
450.00 LBS
related products

Jerr-Dan 14,000lb. Bus Arm | Tire Underlift

 For Heavy Duty Wreckers

This is a Jerr-Dan 14,000lb. Bus Arm / Wheel Lift can be used on a 25-Ton Heavy duty wrecker.


Jerr-Dan PN 2503880088

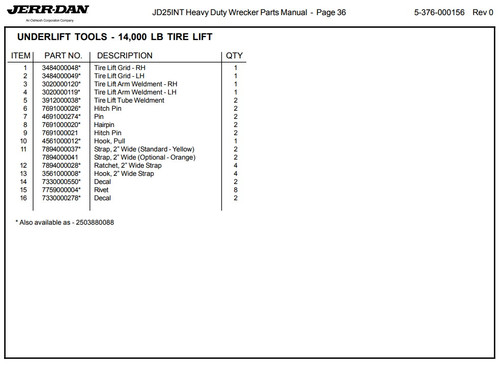

- This kit includes:



(1)   3484000048   Tire Lift Grid - RH

(1)   3484000049   Tire Lift Grid - LH

(1)   3020000120   Tire Lift Arm Weldment - RH

(1)   3020000119   Tire Lift Arm Weldment - LH

(2)   3912000038   Tire Lift Tube Weldment

(2)   7691000026   Hitch Pin

(2)   4691000274   Pin

(2)   7691000021   Hairpin

(1)   4561000012   Hook, Pull

(2)   7894000037   Strap, 2in Wide (Standard Yellow)

(4)   7894000028   Ratchet, 2in Wide Strap

(4)   3561000008   Hook, 2in Wide Strap

(2)   7330000550   Decal

(8)   7759000004   Rivet

(2)   7330000278   Decal

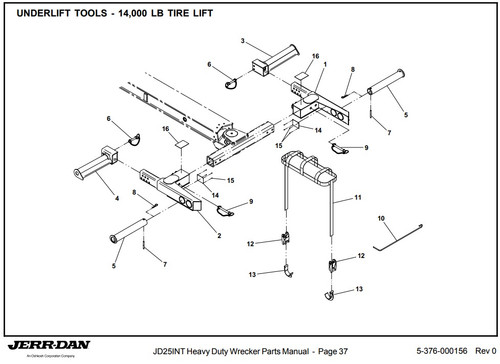

- See photos for a detail of what is included in the kit. Each included item is marked with an asterisk *
