SALE
Samurai 12,500 lbs 12v Electric Winch w/Steel Cable | Warrior
$838.00
$812.00
(You save $26.00)
- SKU:
- 125VS12-CAD
- Weight:
- 100.00 LBS
- SHIPPING:
- CALCULATED AT CHECKOUT
Samurai 12,500 lbs 12v Electric Winch w/Steel Cable | Warrior
Description
- Revolutionary Design External Brake
- 600 amp Silver Tip Contactor
- Silver Copper Motor with Copper Brush Holders
- Extensive Waterproof Sealing to IP68 Standard
- HRC50 Full Steel Gears
Our top performance winches just got better!
Our premium 'Next Generation' Samurai range are even faster, with a lower current draw and now boast a revolutionary external brake, more capable of load holding & lowering, as well as ensuring there's no heat build up in the drum.

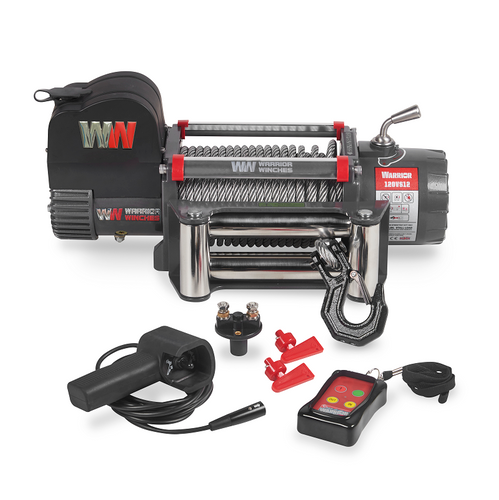

Ideal for recovery and 4x4 applications. Outstanding features include high quality series wound double sealed motor with solid brass contacts, heavy duty 4 pin waterproof contactors, double sealed drum on maintenance free bearings and quiet, efficient full steel planetary gearing. Comes with stainless steel roller fairlead and fittings as standard. The 12V version comes complete with heavy duty integrated wireless remote.
Specifications
| SKU | PRNT-Samurai-12500-CAD |
| Rated Line Pull (lbs) | 12500 |
| Motor Type | 12V: Input: 6.7hp/5.0Kw Output: 3.2hp/2.4kW |
| Gearing | 253:1 |
| Braking Action | External Brake |
| Clutch | Manual |
| Mounting Pattern | 10" x 4.4" (254 x 114 mm) |
| Cable Material | Steel or Synthetic |
| Dum Size - Dia x L | 2.48" x 8.78" |
| Dimensions (L x W x H) | 22.01'' x 6.30'' x 9.76'' |
| Product Weight lbs (kg) | 97.02 (44.0) |
Line Pull Spec
| Layer of Rope/Cable | Line Pull: lbs(kgs) | Rope on drum ft(m) |
|---|---|---|
| 1 | 12500 (5669) | 15.1 (4.6) |
| 2 | 9775 (4433) | 34.1 (10.4) |
| 3 | 8000 (3628) | 57.7 (17.6) |
| 4 | 6800 (3084) | 83.7 (25.5) |
| Line Pull lbs (kgs) | Line Speed 12v ft/min (m/min) | Line Speed 24v ft/min (m/min) | Amp Draw 12v | Amp Draw 24v |
|---|---|---|---|---|
| 0 | 27.9 (8.5) | 36.1 (11.0) | 45 | 30 |
| 6000 (2721) | 11.5 (3.5) | 12.1 (3.7) | 200 | 130 |
| 8000 (3629) | 8.2 (2.5) | 10.5 (3.2) | 240 | 180 |
| 10000 (4535) | 5.9 (1.8) | 8.9 (2.7) | 300 | 220 |
| 12500 (5669) | 4.2(1.3) | 7.5(2.3) | 380 | 255 |
This product is ODF and may require one or more Accessorial Fees.
